If you're tackling how to connect the electrical wires broan btx1 series 30 range hood wiring connection, follow a safety-first, stepwise approach. Confirm the hood nameplate ratings, turn off the breaker, and read the Broan wiring diagram before you begin.
Manufacturer specifications indicate most BTX1 30-inch hoods are 120 volts and commonly draw under 8 amps. As of 2026, follow the Broan instructions and NEC requirements for circuit sizing and grounding. Now let’s get straight to the practical steps.
Quick Answer
how to connect the electrical wires broan btx1 series 30 range hood wiring connection, choose hardwired unless a cord is permitted.
Shut off and lock the breaker before touching wiring.
Match conductor colors and use the correct wire gauge.
Bond the ground to the hood chassis and verify continuity.
What to confirm first (model nameplate, voltage, and circuit capacity)
Find the hood nameplate, and confirm model number, rated voltage, and maximum current draw. The nameplate tells you whether the unit is 120 volts and the amp or watt rating.
Compare the nameplate amperage to the circuit breaker rating and existing cable. If the nameplate shows 6 amps, a 15 amp circuit with 14 AWG is typical. If the nameplate lists higher current, use 12 AWG on a 20 amp breaker.
Check for any manufacturer notes about cord kits or required terminal torque. For NEC guidance, refer to NFPA resources and keep the Broan installation guide on hand for model-specific wiring diagrams.

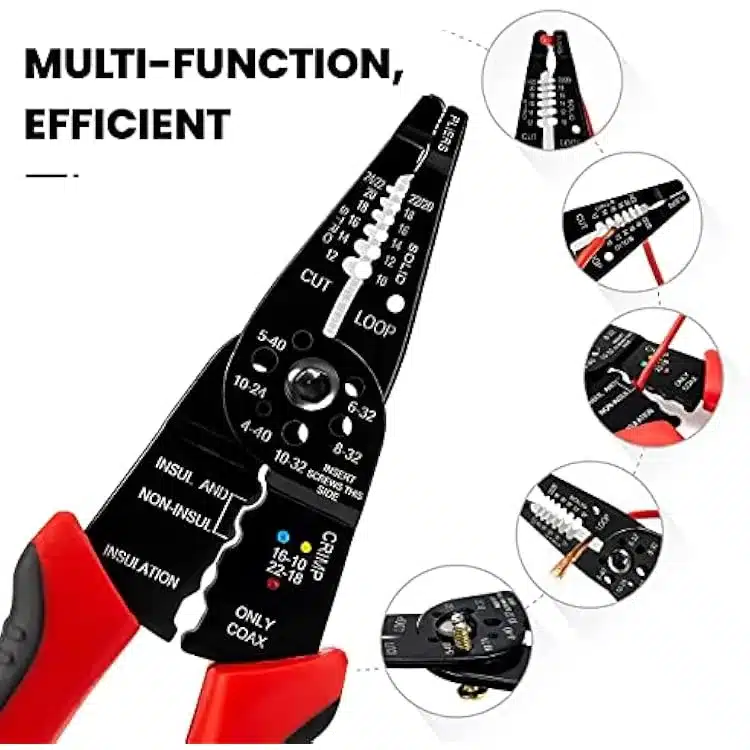

Tools & materials checklist (exact wire, connectors, clamps, testers)
Gather all parts and tools before you start. Here is a concise shopping and tool list to avoid trips back to the box store.
| Item | Typical choice | Purpose |
|---|---|---|
| Cable | 14/2 NM-B or 12/2 NM-B | Matches breaker ampacity |
| Connectors | UL-listed wire nuts or WAGO | Secure, code-approved splices |
| Clamp | Metal cable clamp | Strain relief at knockout |
| Tester | Non-contact tester, multimeter | Verify dead and measure voltage |
| Ground hardware | Green screw, copper pigtail | Bond chassis to grounding conductor |
| Tools | Wire strippers, screwdrivers, pliers | Clean, secure terminations |
Also have a junction-box cover, pigtail wire of the same gauge, and a UL-listed cord kit if you plan to use a plug. Use only parts listed for copper conductors and the appropriate AWG.

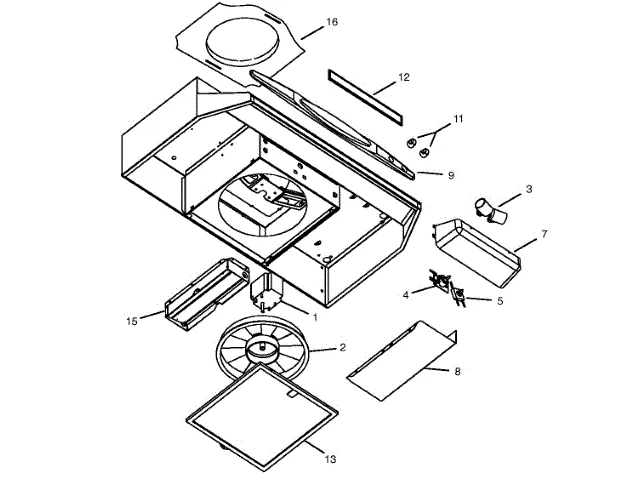

Broan BTX1 Series 30 wiring components explained (junction box, motor/light leads, ground)

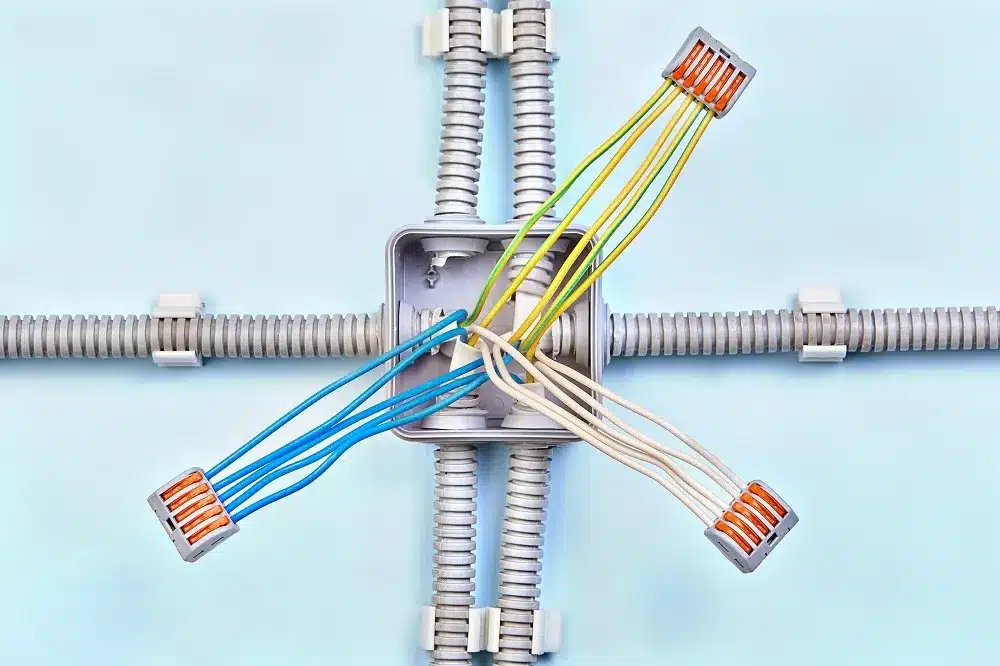

Inside the hood you will see an internal junction box, motor and light leads, and a chassis ground point. The junction box is the space where splices are made and a clamp mounts.
Motor and light leads are often color-coded, but colors can vary by model. Always confirm which lead is hot, switched hot, or neutral from the wiring diagram that came with the unit.
The equipment grounding conductor may be a bare copper wire or green lead and must be attached to the chassis ground screw. Proper bonding prevents the chassis from becoming live if a fault occurs.
If the hood has separate switched fan and light leads, plan wiring runs and pigtails accordingly so switches control the correct function.
Hardwired vs cord-and-plug: which is allowed and when to choose each
If the manufacturer permits a plug, a cord kit may be used for easier disconnect. If the installation is permanent and concealed, hardwiring is usually the preferred method.
Hardwired installations use NM-B cable or conduit into the hood junction box, with a clamp at the knockout and splices inside the box. This is common when the junction box is concealed under cabinets.
Cord-and-plug installations require a UL-listed cord kit and a grounded, accessible outlet. The receptacle must remain accessible for service and meet local code. Ask your local AHJ whether a cord is acceptable for your installation.
Before choosing, read the hood manual and verify local inspection rules. If you plan to plug the hood into an outlet, place the outlet where it can be reached without removing the hood.
Step-by-step wiring workflow — hardwired installation
Turn off and lock the breaker, and verify the power is off with a non-contact tester. Keep the panel secured until testing is complete.
Feed the cable. Insert 14/2 or 12/2 NM-B into the junction box through a knockout. Install a metal cable clamp and leave about 6 inches of conductor inside the box.
Strip and identify. Strip about 3/4 inch from each conductor. Identify hot as black, neutral as white, and ground as bare or green. Match any extra colored leads to the hood wiring diagram.
Splice properly. Use UL-listed wire nuts or WAGO connectors sized for the conductors. Make pigtails when multiple connections are required. Twist conductors together before applying the connector.
Bond ground. Attach the equipment grounding conductor to the chassis ground screw. Ensure good metal-to-metal contact with no paint under the screw.
Fold and secure. Fold wires neatly, install the junction-box cover, and mount the hood per the installation instructions. Restore power and perform the tests listed in the testing section.
If the manual provides terminal torque values, apply them. If not, tighten screws until secure, then give a slight additional turn.
Step-by-step wiring workflow — cord-and-plug installation
Use a UL-listed cord kit when the manufacturer allows it and the outlet is accessible. A cord kit simplifies future service disconnects.
Select the kit rated for the hood amperage and plug type. Avoid damaged or undersized cords.
Route the cord through the knockout and secure it with the supplied strain relief. The clamp must prevent tension on terminals.
Connect hot to hot, neutral to neutral, and ground to the chassis ground. Use UL-listed connectors and the same gauge pigtails if needed.
Install a grounded receptacle that remains accessible. If the outlet is near water, follow local rules for GFCI protection.
A cord installation is convenient for service, but only use it when the hood manual permits and the AHJ accepts it.
Testing and verification: voltage, continuity, ground integrity, and operational checks
Always test before you finish. These checks confirm safety and correct wiring.
Power off checks. With power off, use a continuity tester to confirm ground from the panel to the hood chassis. Expect near-zero ohms.
Power on checks. Restore power and measure hot to neutral voltage with a multimeter. Expect about 120 volts for standard units.
Functional checks. Run each fan speed and light setting. Listen for abnormal noises, check for flicker, and confirm switches operate the correct loads.
If you detect an open ground, incorrect voltage, or abnormal motor behavior, shut power off and recheck connections.
Common mistakes and troubleshooting (miswired leads, wrong gauge, shared circuit issues)
Hot and neutral swapped is a common wiring error that causes lights not to work or odd motor behavior. If this occurs, power off and re-identify wires before reterminating.
Using the wrong wire gauge causes overheating or nuisance trips. Fix this by moving the hood to a correctly sized circuit, or re-running the cable with 12 AWG for a 20 amp breaker.
Loose connectors, missing clamps, and unbonded grounds lead to intermittent operation and safety hazards. Tighten connectors, replace damaged clamps, and always bond the ground.
Multi-wire branch circuits and shared neutrals are complex. If you encounter these, get a licensed electrician to review and correct the wiring.
Safety, code, and compliance: NEC highlights, UL/manufacturer instructions, and inspection tips
Follow the Broan manual and the NEC for circuit sizing, box fill, and grounding. The NEC sets minimums for kitchen circuits and conductor ampacity. For authoritative standards, see NFPA resources.
Checklist for compliance:
- Use conductor gauge that matches breaker rating.
- Install a listed cable clamp at each knockout.
- Ensure junction-box fill meets code for the conductors and devices present.
- Bond equipment grounding conductor to the chassis with a listed screw.
Obtain permits when required by your local building department. Photograph open-box wiring and retain the hood manual for the inspector.
When to call a licensed electrician
Call a licensed electrician when existing wiring is unclear or when panel changes are needed. A pro will handle multi-wire branch circuits, conduit runs, and panel modifications safely.
Also call a pro if you find shared neutrals, missing or damaged grounding, or if box fill is exceeded. Permits, inspections, and code questions are good reasons to hire a licensed electrician.
Getting a professional to sign off on work reduces inspection delays and liability.
Expert tips and pro practices
Label conductors and document connections with photos to speed future service. Use short pigtails of identical gauge for multiple terminations to keep the junction box tidy.
Leave about 6 inches of free conductor inside the box, folded so the cover closes without pinching. Use only UL-listed connectors and replace any corroded hardware.
When the manual gives torque values, use a torque driver to match them. If you need cleaning tips for nearby cabinet grease, follow safe cleaning methods before starting to avoid oily contamination on wiring.
Final checklist before closing the junction box and finishing the install
Verify these items before you install the cover and finalize the job.
- Breaker locked and power verified off during work.
- Hot to neutral voltage checked and within expected range.
- Ground continuity confirmed to chassis with near-zero ohms.
- All connectors are UL-listed and fully tightened.
- Cable clamp installed and conductor strain relief secured.
- Junction-box fill is within allowable conductor equivalents.
- Nameplate visible and manual stored for inspection.
Label the box with the installation date and installer. Photograph final wiring for records and inspector review.
Frequently Asked Questions
Can I use 14/2 cable for a Broan BTX1 30-inch hood?
Yes, if the hood nameplate shows 120 volts and the load is within a 15 amp circuit. Use 14 AWG only on a 15 amp breaker. If the unit requires a higher ampacity or local code specifies a 20 amp circuit, use 12 AWG and a 20 amp breaker.
Do I need to bond the hood chassis to the ground?
Yes, always bond the equipment grounding conductor to the chassis ground screw. A solid bond provides a low-impedance path back to the panel, which helps trip the breaker if a fault occurs. Verify continuity from chassis to panel ground before restoring power.
What tests should I run after wiring the hood?
With power off, test ground continuity to chassis and measure resistance. With power on, measure hot to neutral voltage and run all fan speeds and light settings. Note voltage values and any abnormal noise or flicker for troubleshooting and inspector records.
Is a permit required for this wiring work?
Permit requirements vary by jurisdiction. Many municipalities require permits for kitchen circuit alterations or new branch circuits. Contact your local building department before starting work so inspections and approvals proceed smoothly.
When should I call a licensed electrician?
Call an electrician for unclear existing wiring, multi-wire branch circuits, panel changes, or failed continuity tests. If you encounter shared neutrals, missing grounds, or code questions, a licensed pro will ensure safe, code-compliant corrections.
