If you need to know how to un instsll a Broan range topper, this guide walks you through the correct, safe steps. You’ll get clear paths for corded versus hardwired units, and for ducted versus recirculating vents.
Manufacturer specifications confirm most Broan under‑cabinet hoods run on a 120 volt household circuit, and common duct collars are 3‑1/4 inch by 10 inch rectangular or 4 inch round. As of 2026, local electrical codes require junction boxes to remain accessible, so read the electrical guidance before touching wires.
Quick Answer
how to un instsll a broan range topper is a conditional process.
Corded units, unplug then remove filters and mounting screws.
Hardwired units, shut off the breaker and verify zero volts.
Ducted units, disconnect the duct, cap the opening, then remove.
Problem / common pain points when removing a Broan hood
Hidden screws and painted seams are the most common delays. You cut caulk with a utility knife first, then pry gently to avoid chipping cabinet veneer.
Rusted screws and clamps often seize, which adds time and demands extractor tools. Grease buildup hides fasteners and makes parts slippery, so wear gloves and have cleaners ready.
Live wiring and inaccessible junction boxes are major safety risks. Per the National Fire Protection Association, circuits must be deenergized and junction boxes must remain accessible, so verify power before you work.
How Broan range toppers are mounted and wired (what to look for)
Broan under‑cabinet hoods typically mount with a bracket under the cabinet and one or two rear screws into the wall or cabinet back. Spot the bracket and note screw locations before you remove anything.
Look for a visible cord or a covered junction box. A cord means you can unplug, but still test the outlet. No cord means hardwired, so plan to shut off the breaker and open the junction box.
Check the duct collar position, top or rear, to see whether attic or exterior access will be needed. Model stickers inside the light cavity give the mounting diagram and wiring colors, so write down the model number if you plan to reference the manual on Broan’s site.

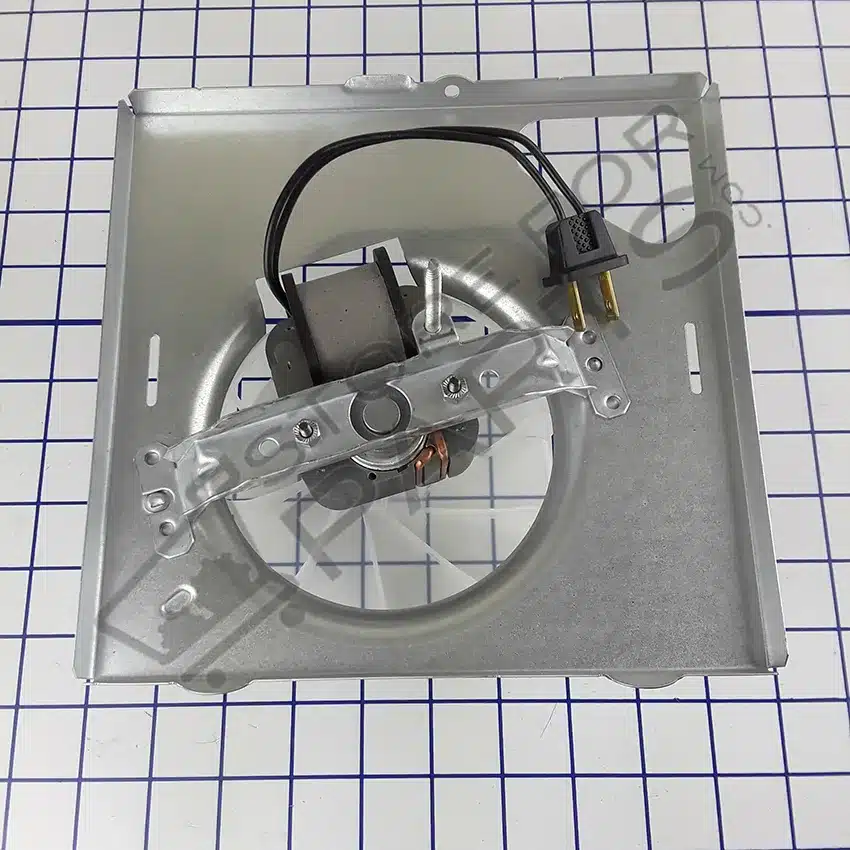

Visual reference for wiring and box layout
Features & components to identify before you start (filters, bracket, duct collar, junction box)
Identify these parts so you know what to remove and protect.
| Component | What to check | Typical tool |
|---|---|---|
| Grease filter | Latch or slide type, removal direction | Hands or flathead |
| Charcoal filter | Present on recirculating models | Hands |
| Light assembly | Bulb type, access screws | Phillips #2 |
| Mounting bracket | Cabinet floor screws, rear screw | 1/4 inch nut driver |

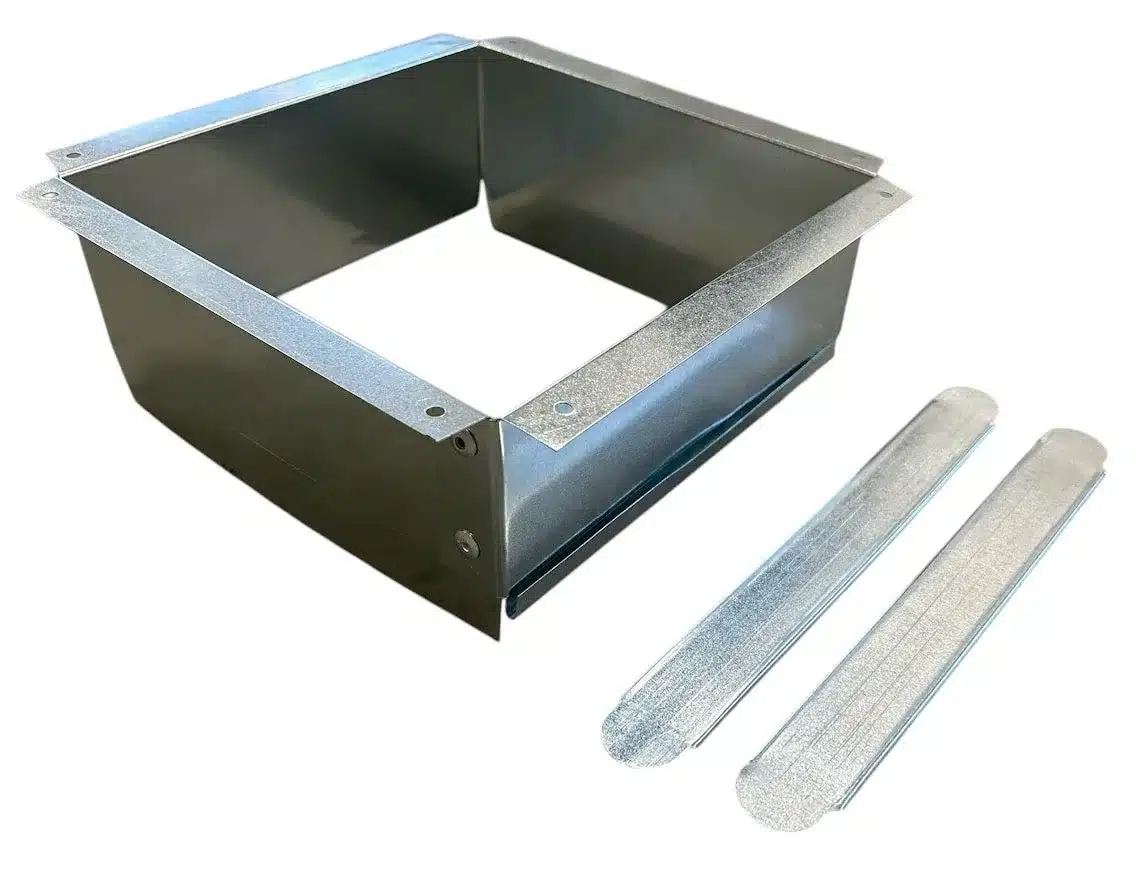

| Duct collar | Size and clamp type | Nut driver, pliers |
| Junction box | Wire nuts, strain relief | Multimeter, screwdrivers |
Take photos of wiring and underside panels. Label hardware into small bags so reassembly is fast. If the hood is wide or heavy, arrange a helper or a ratchet strap.
Decision flow — pick your workflow (plug‑in vs hardwired, ducted vs recirculating, under‑cabinet vs wall)
Use this if/then flow before you start. It directs you to the right set of steps.
If you see a cord, unplug and treat as plug‑in. Then remove filters and locate screws.
If no cord is visible, cut power at the breaker and verify with a tester and multimeter. Then proceed to junction box work.
If a duct collar is present, access and disconnect the duct before lowering the hood.
If the unit is heavy or the cabinet looks thin, get a helper or use a strap to support the weight.
Tools, supplies, and prep checklist (what to have on the ladder)
Bring the right tools so the job stays quick and safe.
| Tool / Supply | Purpose |
|---|---|
| Non‑contact voltage tester | Quick power checks |

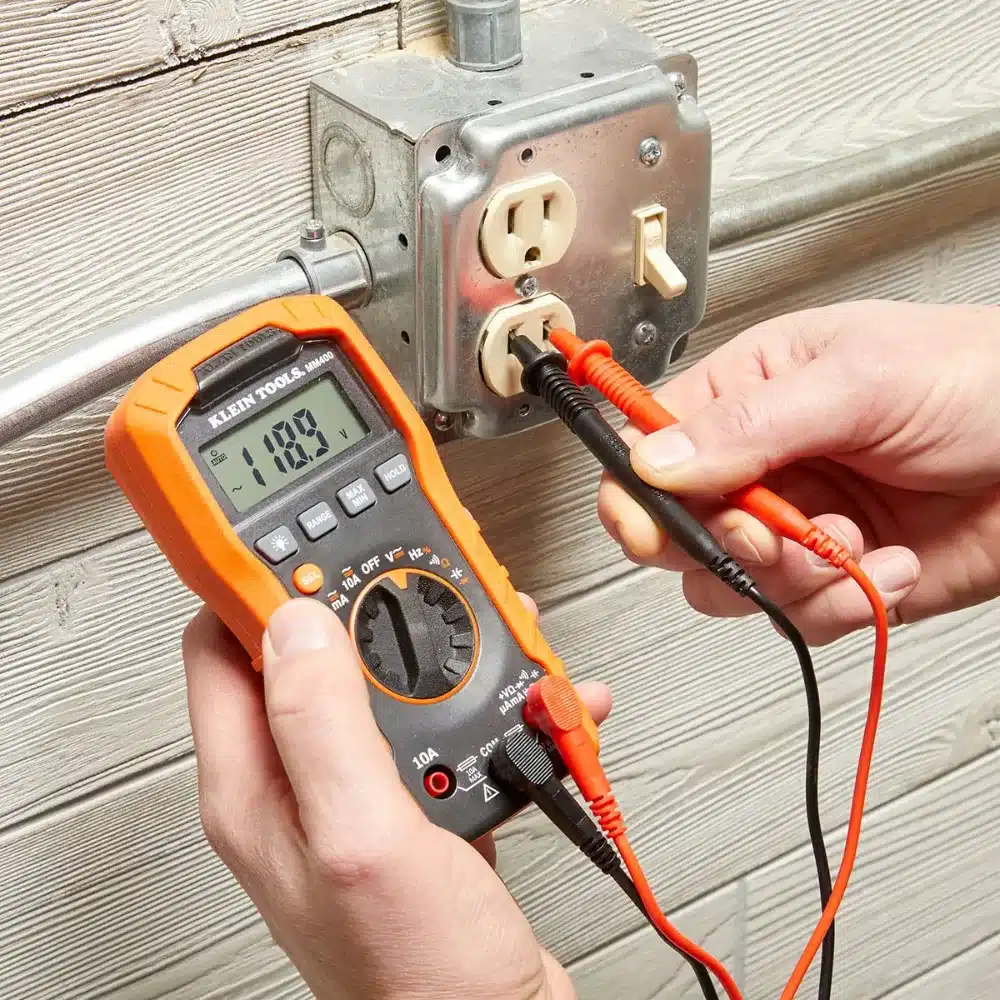

| Multimeter | Verify zero volts |
| Phillips #2, flathead | Light and trim screws |
| 1/4 inch nut driver | Mounting screws and clamps |
| Utility knife | Cut caulk or paint seals |
| Ratchet strap | Single‑person support |
| Gloves, safety glasses | Protection |
| Drop cloth | Protect cooktop |
| Wire nuts, electrical tape | Cap wires if needed |
Clear the cooktop, spread a drop cloth, and put tools within reach before you climb. Take a photo of the hood underside and wiring before you remove anything.
Step‑by‑step: unplugged, plug‑in Broan + recirculating (complete workflow)
This path is the simplest, but still follow the order.
- Unplug the hood and leave the plug visible.
- Remove grease filters and bulbs to expose any hidden screws.
- Support the hood with a helper or strap.
- Cut any caulk along cabinet seams with a utility knife.
- Remove cabinet floor screws and rear bracket screws.
- Lower the hood straight down and set it on a padded surface.
Store matching screws in labeled bags and clean the opening before installing a new unit or finishing the cabinet.
Step‑by‑step: hardwired Broan + recirculating (safe electrical disconnection workflow)
First sentence answer, shut the breaker and confirm no voltage. That protects you and prevents wire damage.
- Turn off the correct breaker, tag it if possible.
- Use a non‑contact tester at the controls, then open the junction box and confirm zero volts with a multimeter.
- Photograph wiring and label conductors if needed.
- Unscrew wire nuts and separate the hood harness from house wires, then cap each house conductor with a wire nut.
- Replace the junction box cover if you are leaving the circuit inactive.
- Support the hood and remove mounting screws, then lower the unit.
If you are not confident testing electricity, call a licensed electrician. A safe termination and accessible junction box meet code requirements.
Step‑by‑step: ducted Broan (disconnecting ductwork and sealing the opening)
If the hood vents outdoors, disconnect the duct before lowering the hood, so the weight does not pull or tear the duct.
- Turn off power per the hardwired steps if needed.
- From above or behind, loosen the clamp or remove screws holding the duct to the collar.
- Carefully separate the duct from the collar, supporting the duct to prevent tearing.
- Temporarily seal the duct with foil tape and a rigid cap to stop drafts.
- Lower the hood and plan for a permanent cap or transition collar if you are not reinstalling.
For a permanent seal, use mastic or UL‑approved foil tape and match the collar size to avoid airflow loss.
Heavy units, awkward mounts, and single‑person removal strategies (straps, helpers, extractors)
If the hood weighs over 25 pounds or is 30 inches plus in width, use two people. For solo work, a ratchet strap and a ladder board work well.
Safe solo support method
- Loop a ratchet strap under the hood and over a ladder top or cabinet shelf, then tighten so the hood bears on the strap.
- Put a padded board on a ladder rung to cradle the hood edge and share the load.
If fasteners strip or shear
- Apply penetrating oil and let sit 10 to 15 minutes.
- Use an impact driver with correct bits to avoid rounding heads.
- If a stud breaks, try a left‑hand drill bit or extractor set, starting small.
Protect cabinet finishes by placing a wood block under straps and by prying with plastic trim tools.
Mistakes to avoid — common errors that damage cabinets, wiring, or ducts
Cut caulk before prying to avoid chipping cabinet faces. Use a plastic wedge to protect finishes when separating the hood.
Never assume a non‑contact tester is enough, always confirm with a multimeter inside the junction box. If you disconnect wires and plan no reinstall, keep them capped and accessible under a cover plate.
Do not seal ducts with cloth or masking tape. Use foil tape or mastic for airtight, long term joints to avoid leaks, pests, and energy loss.
Safety, code, and compliance — junction box access, grounding, and permits
Keep the junction box accessible and covered, because buried splices usually violate code. Ground continuity must be preserved, the green or bare wire must remain attached to the hood ground screw.
If you alter permanent wiring or create new duct penetrations, check local building department rules and get permits when required. For U.S. code references, see the National Fire Protection Association at NFPA. Manufacturer installation manuals show model specifics, so consult Broan at Broan.
Costs, time estimates, and when to hire a pro
Quick unplugged, recirculating removals often take 30 to 60 minutes with two people. Hardwired, ducted removals commonly take 60 to 180 minutes and may require an electrician or HVAC pro.
Typical cost guidance
| Job | Typical time | Typical cost |
|---|---|---|
| Corded, recirculating DIY | 30–60 minutes | $0 |
| Hardwired, no duct work | 60–90 minutes | Electrician $75–150 per hour |
| Duct disconnect with attic work | 1–3 hours | HVAC or handyman $80–150 per hour |
| Disposal/recycling | 15–60 minutes | $0–50 |
Hire a licensed electrician if you must alter permanent wiring, or if junction boxes are inaccessible. Hire an HVAC pro for major duct relocation or exterior vent work.
Expert tips & troubleshooting (stuck screws, seized clamps, hidden fasteners)
Label screws and parts as you remove them, because correct reassembly saves time. Photograph every step for a reference during reinstall.
Stubborn fastener fixes
- Penetrating oil, then wait 10 to 20 minutes.
- Use an impact driver with the right bit.
- Try a left‑hand drill bit or extractor before enlarging holes and weakening mounting points.
Cleaning and maintenance after removal
- Replace grease filters or charcoal filters before reinstalling. Old filters restrict flow and increase fire risk. Read cleaning guides for cabinet degreasing and filter care on our cleaning pages and the kitchen maintenance hub.
- Touch up paint or fill screw holes with wood filler before installing a new hood. For cabinet finishing tips, see related guides on color and finishing.
Final decision guide, quick checklist you can follow now
Plugged unit, unplug and remove filters first. Hardwired unit, turn off breaker and confirm zero volts before touching wires. Ducted unit, disconnect duct at the collar and cap the opening before lowering the hood.
Short checklist
- Power method: unplug or breaker off.
- Venting: ducted or recirculating.
- Support: helper or strap ready.
- Wiring: photograph and label.
- Finish: cut caulk and protect surfaces.
If you hit confusing wiring, structural damage, or inaccessible ducts, hire a licensed pro rather than risking safety or code violations.
Frequently Asked Questions
How long does it take to remove a Broan range topper?
A corded recirculating unit typically takes 30 to 60 minutes with two people. Hardwired and ducted removals often take 60 to 180 minutes, depending on attic access and fastener condition.
How do I tell if my hood is ducted or recirculating?
Look for a duct collar on top or rear, or an external vent cap on the roof or wall. If charcoal filters are inside, the unit likely recirculates.
Can I leave disconnected wires capped and buried behind the wall?
No, junction boxes must remain accessible. Cap conductors with approved connectors in the junction box and replace the cover plate, or have an electrician rehouse the circuit.
What should I do with the duct opening after removal?
Temporarily seal the opening with rigid material and foil tape to stop drafts. For a permanent fix, install a proper cap or transition collar and use mastic or UL‑approved foil tape.
How do I dispose of an old Broan range topper?
Remove bulbs and used filters, then take the unit to a scrap metal recycler or schedule bulky pickup. Local disposal options vary, so check municipal rules first.
Do I need a permit to remove or replace a range hood?
Removal alone usually needs no permit, but changing permanent wiring or adding new duct penetrations often does. Check your local building department for specific requirements.
